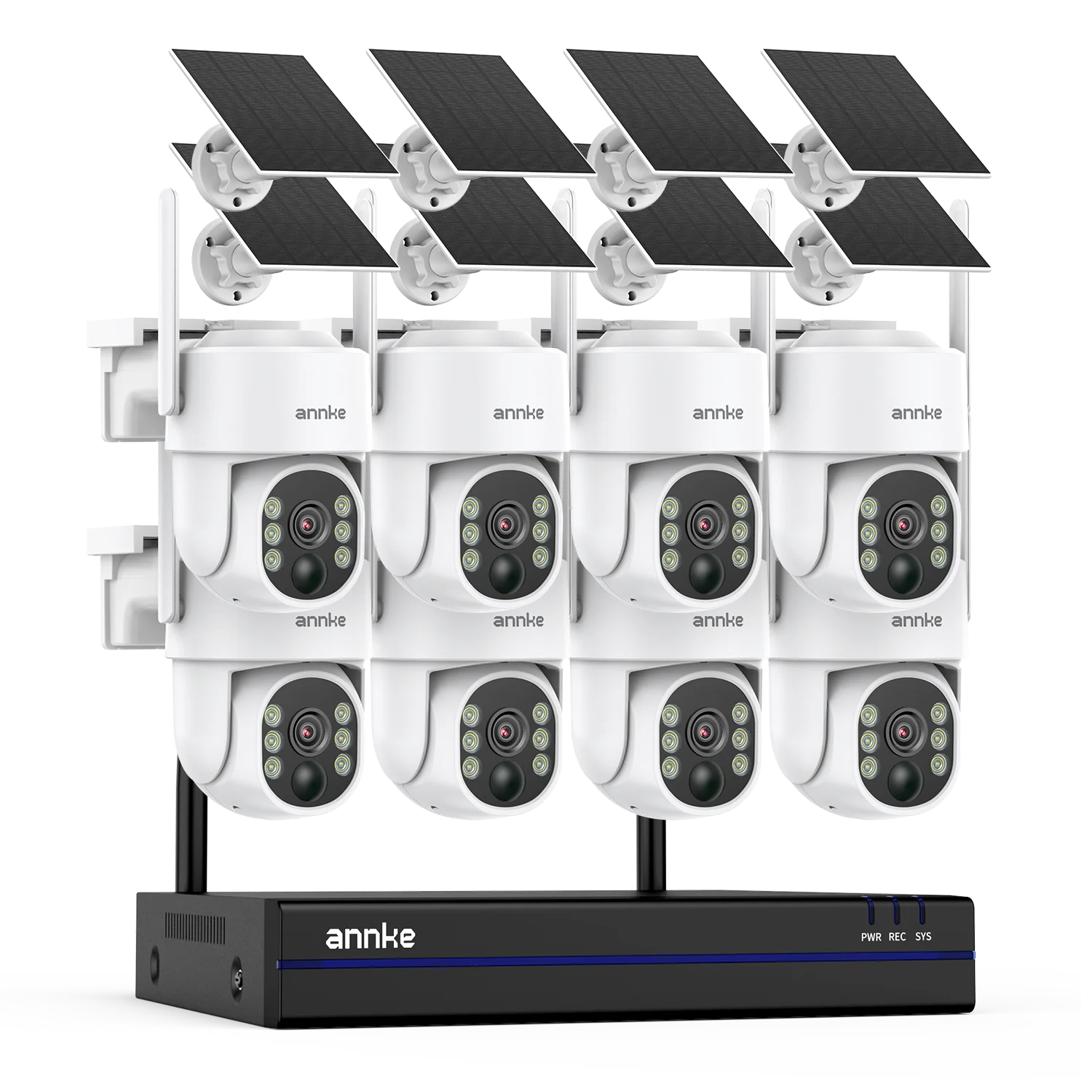

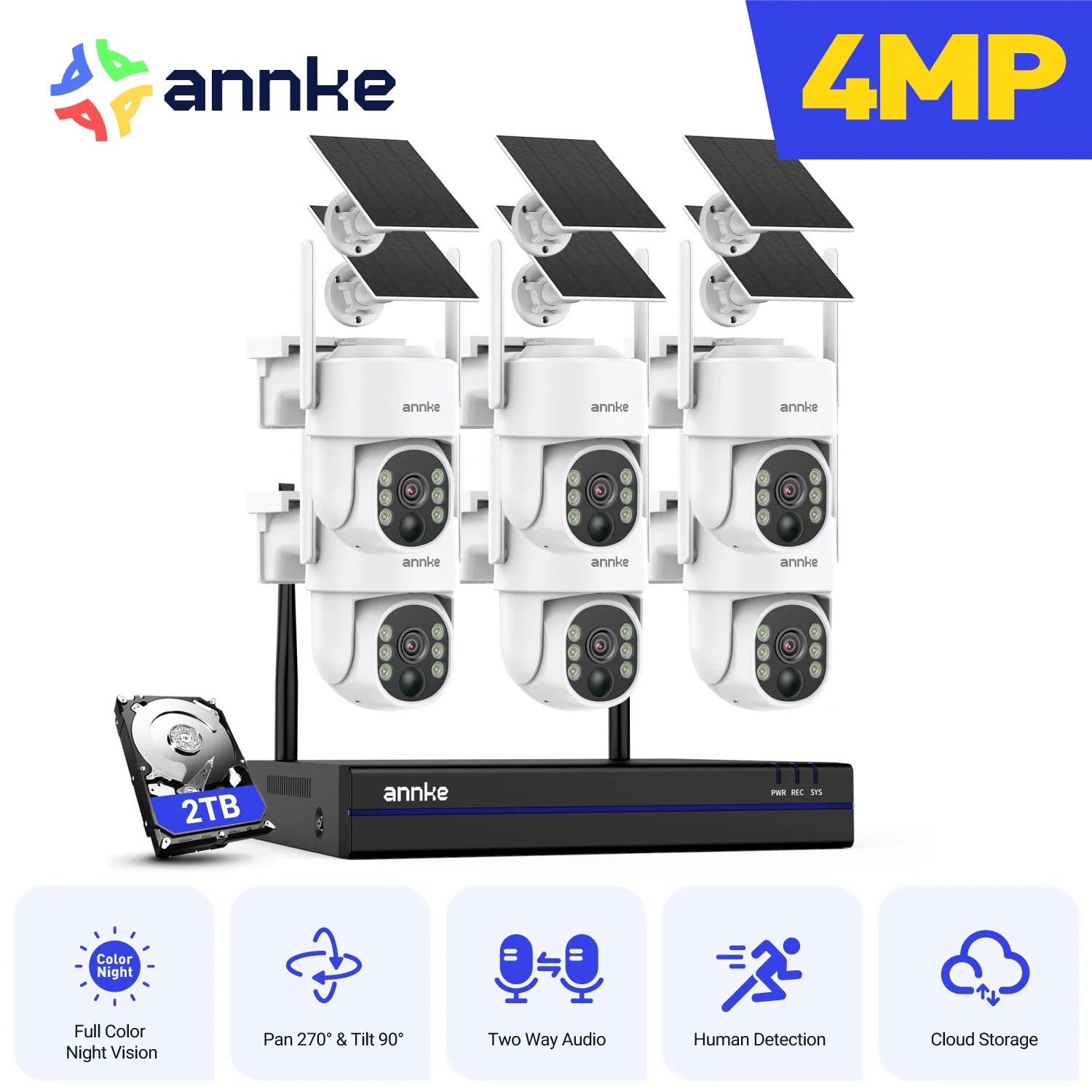

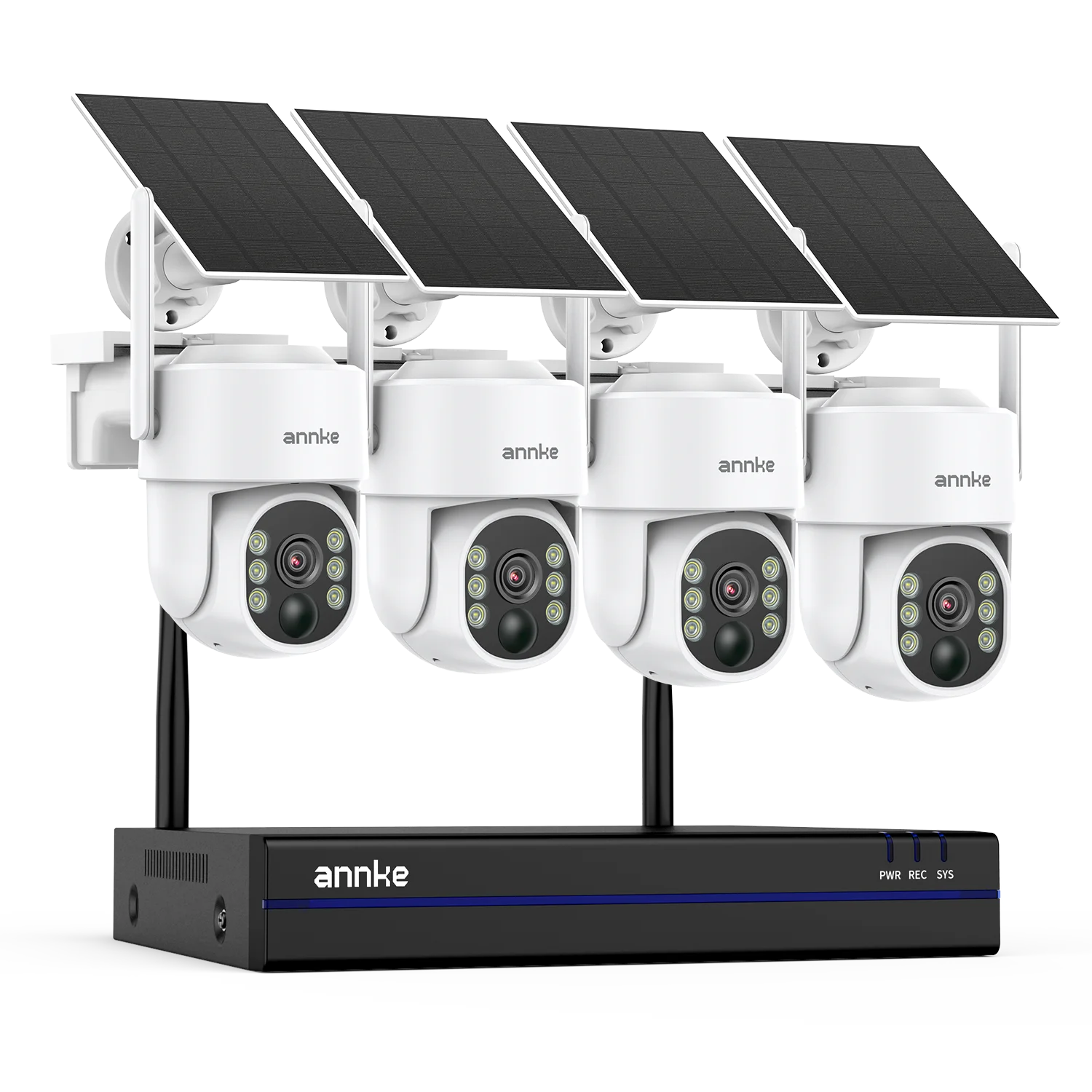

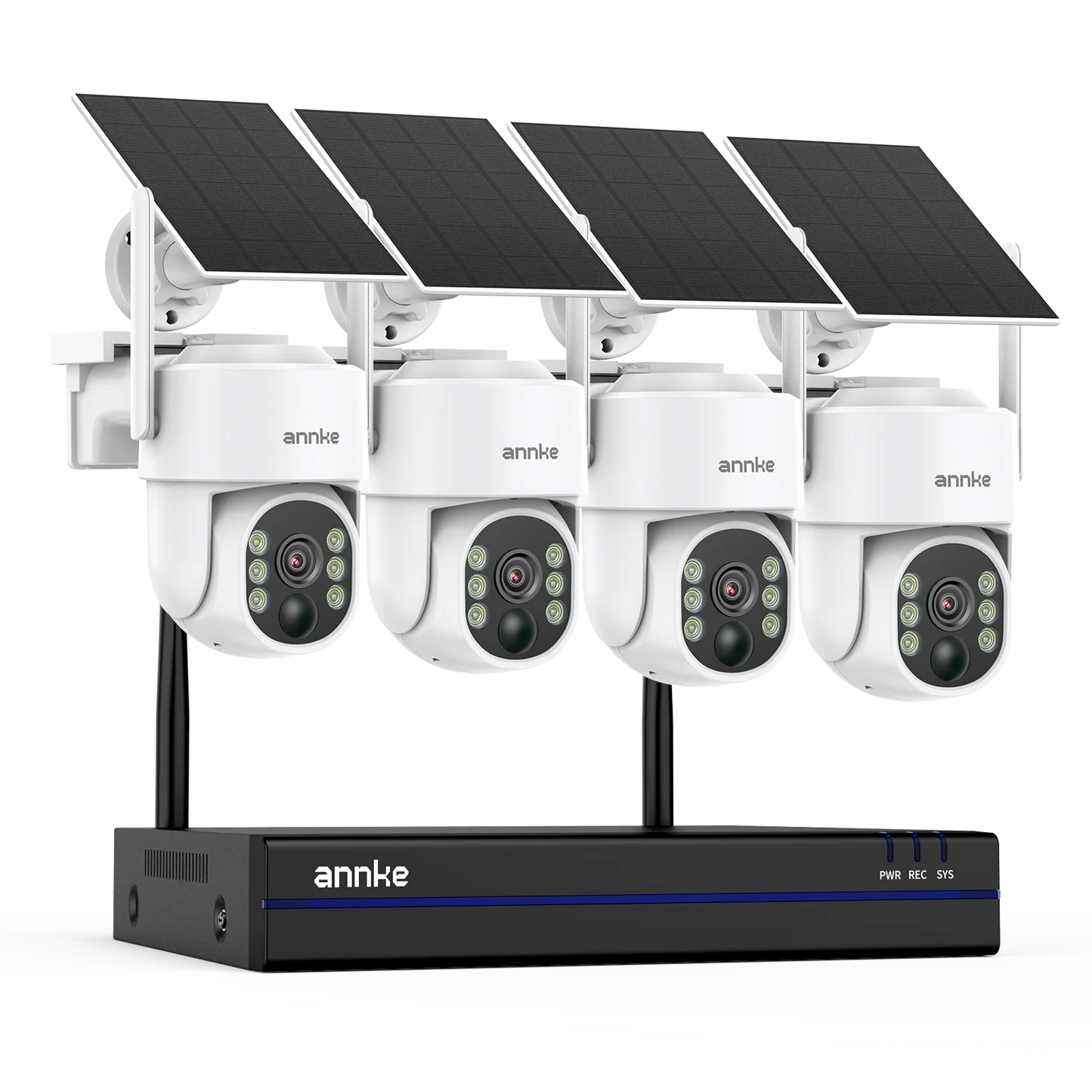

ANNKE 4MP Wireless surveillance system 16CH NVR wifi surveillance camera kit Audio Battery solar surveillance cameras outdoor
ANNKE 4MP Wireless surveillance system 16CH NVR wifi surveillance camera kit Audio Battery solar surveillance cameras outdoor
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANNKE
Built-in battery: 5200 mAh/9000mAh
Cable Length: None
Certification: CE
High-concerned chemical: None
IP Video Input: 16CH Wireless
Indoor/Outdoor: Weatherproof Rating IP65
Lens: 4mm
Model Number: N98WHR-81BL

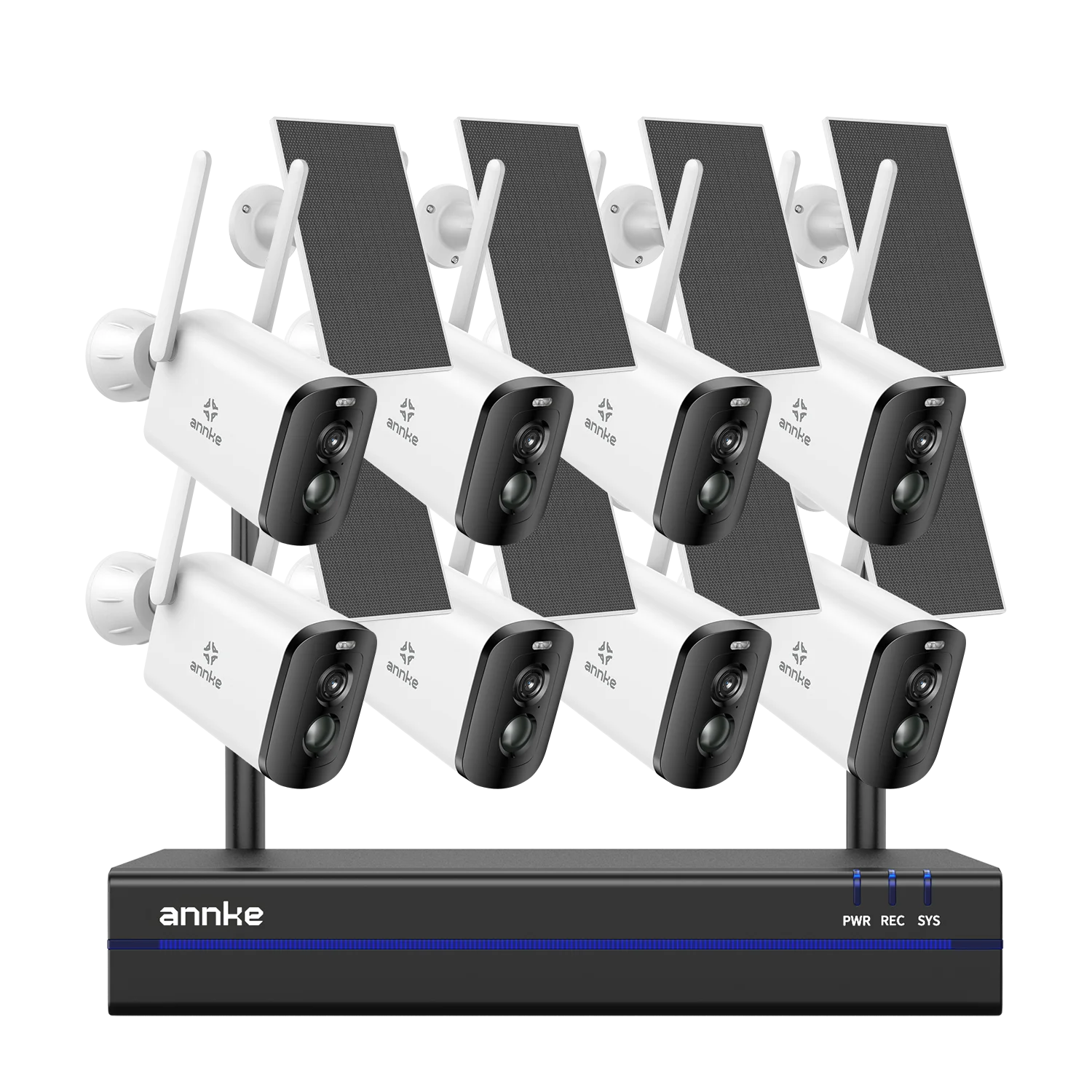

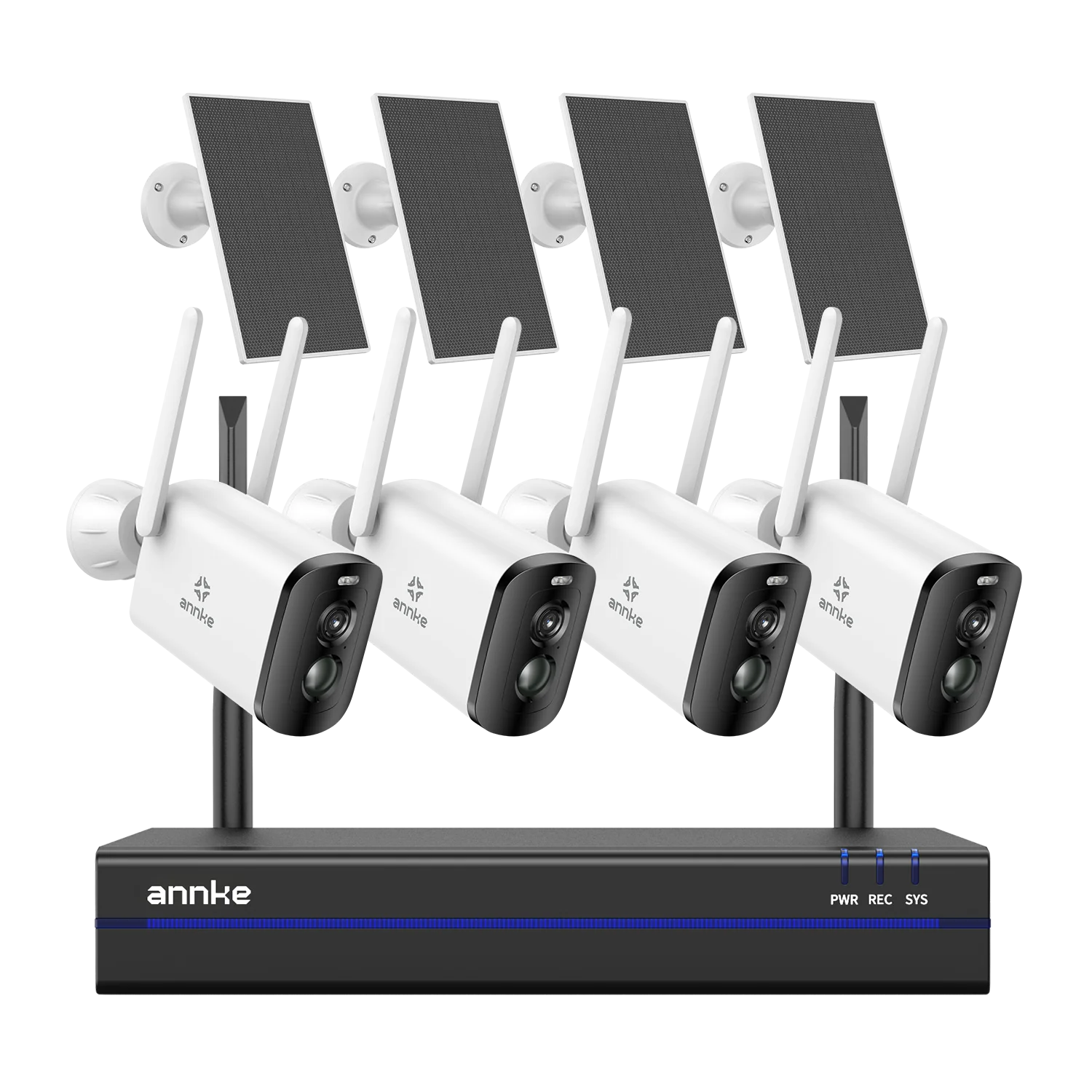

PCS of Camera: 4PCS,8PCS
Resolution: 4MP
Smart home platform: alexa
TV System: NTSC,PAL
Video Compression: H.264+
Video Input: 16 Channel
NVR | ||
Video Format |
H.264+ |
|
IP Video Input |
16CH Wireless |
|
Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M |
|
Max Playback Resolution |
Up to 8M |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 5MP/2CH 8MP |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 8TB capacity(2.5&3.5 inches) |
|
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
3 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
|
Power Consumption |
6 W (Without HDD) |
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|
Dimensions (W X H X D) |
260 X 245 X 47 mm |
|
Weight (Without Hard Disk) |
760 g (Without HDD) |
|

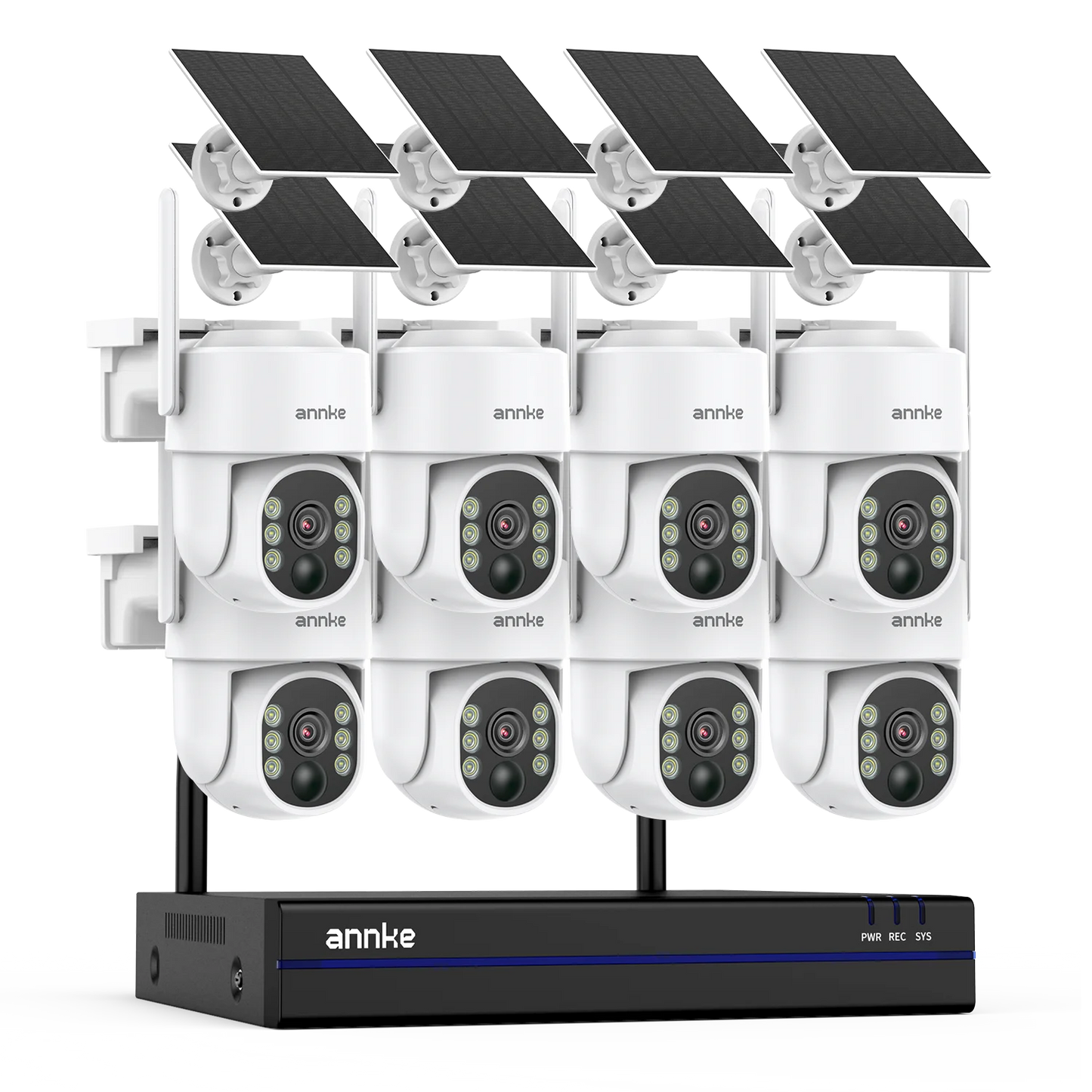

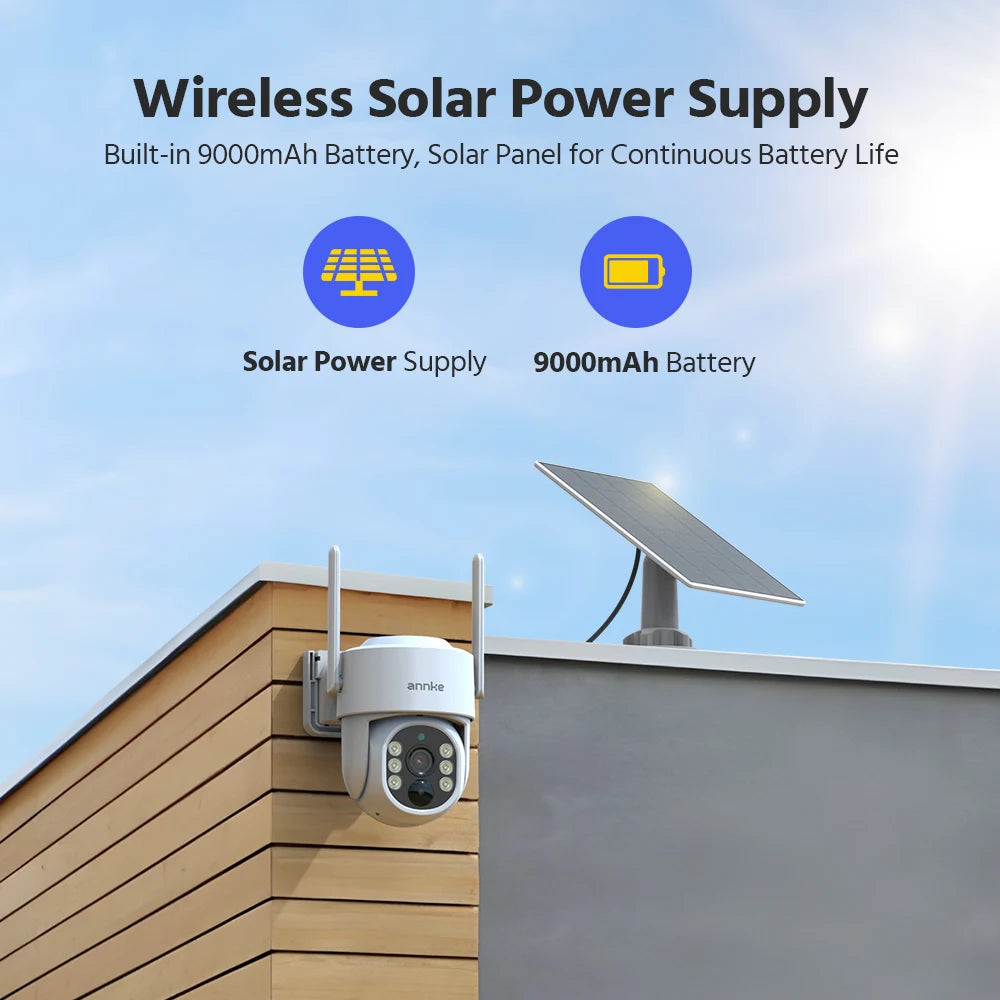

Camera 9000mAh I81BM
Camera |
Video Resolution |
4MP(2560x1440) |
Image sensor |
1/3" Progressive Scan CMOS |
|
Video compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Lens |
4mm |
|
Angle of View |
70° |
|
Number of Infrared/Color LEDs |
6 |
|
Infrared and full color Distance |
Infrared 15m/Color 8m |
|
PT |
Horizontal 270°, Vertical 90° |
|
Built-in battery |
3.7V/9000mAh 2pcs 21700 |
|
Audio Input/output |
Built-in microphone and speaker |
|
Mini. Illumination |
0Lux (with infrared led on) |
|
Day Night Mode |
Auto change with IR-CUT removable |
|
PIR Sensor |
10 meters |
|
Bluetooth pairing |
support |
|
Internet |
Wireless networks |
2.4G&5.8G dual-band，IEEE 802.11.ax |
Wireless Security |
WEP, WPA, WPA2 |
|
Remote Access |
P2P |
|
General |
Housing |
Plastic |
Operating Voltage |
DC 5V |
|
Solar power |
Support |
|
Storage |
Micro SD(Max 256GB) |
|
Operating Temperature |
-20° ~ 50°C(-4°F ~ 122°F) |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP65 |
|
Mount Option |
Wall mount/Ceiling mount |
|
Dimension (L x W x H) |
||
Weight |

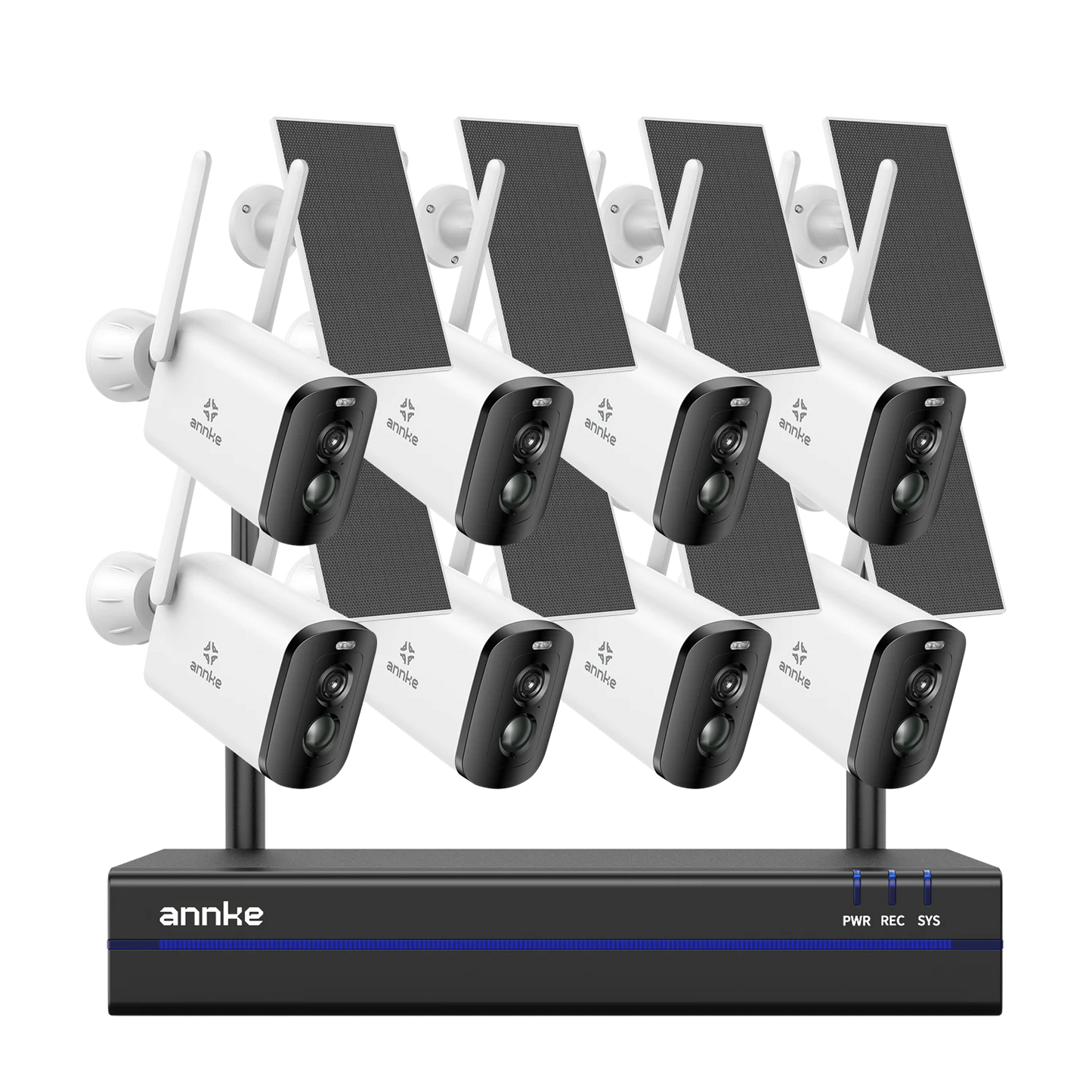

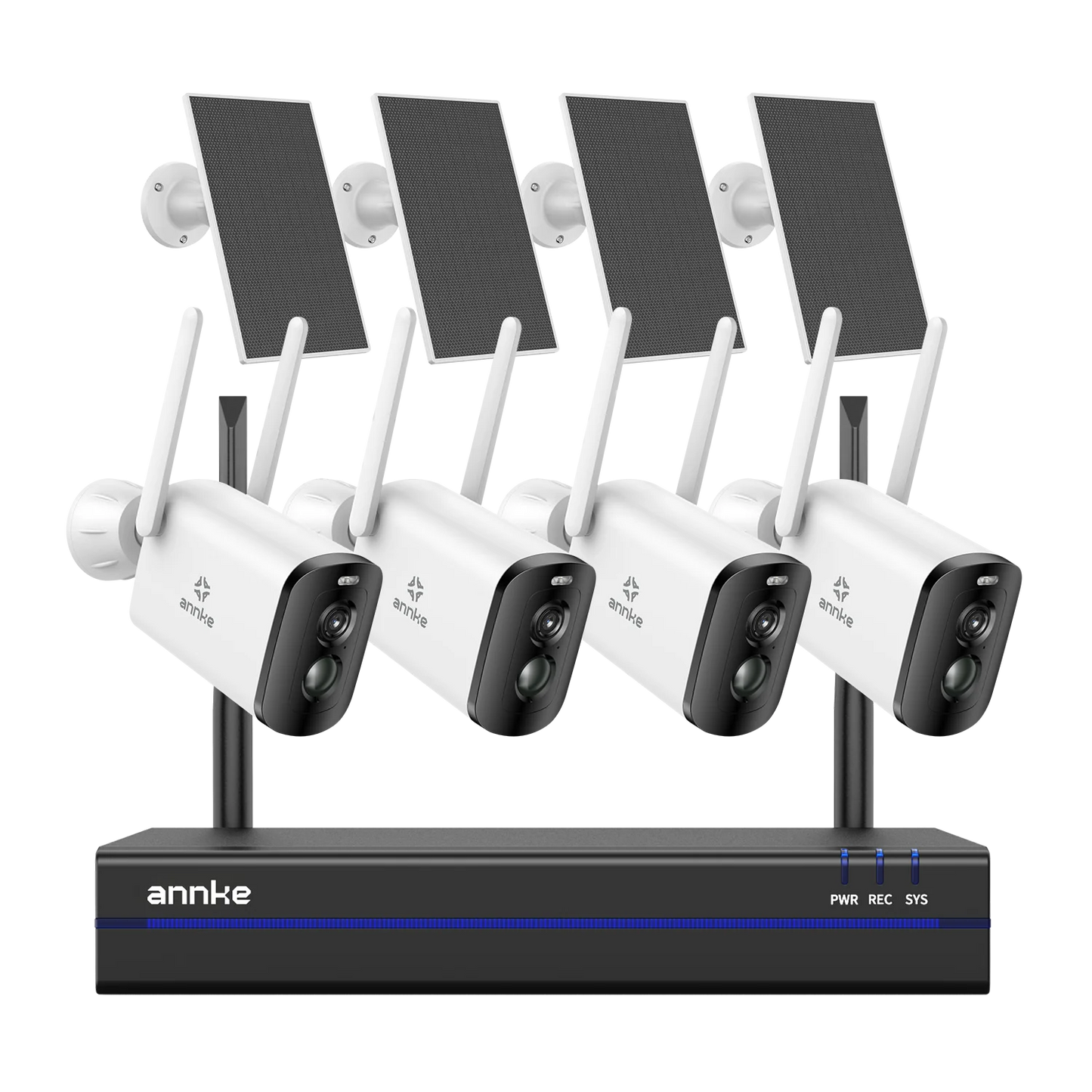

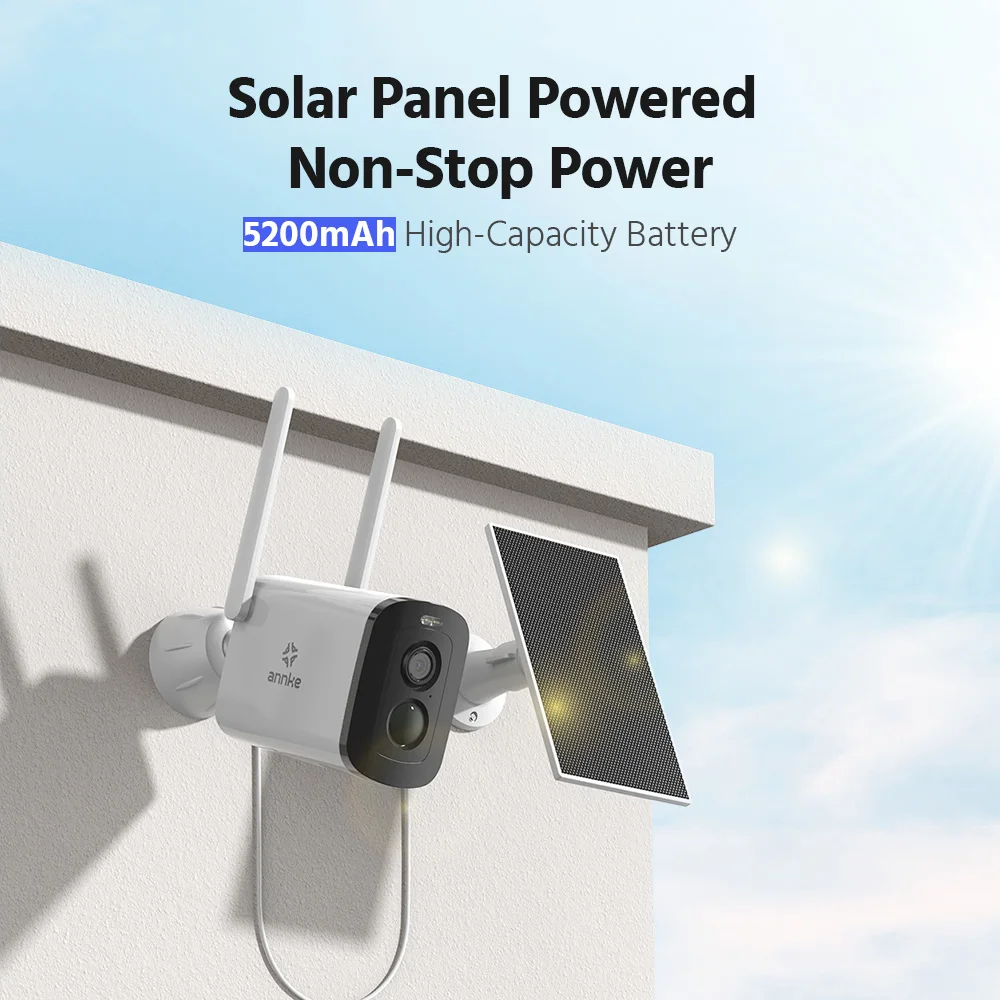

Model Number 5200mAh |
I81BL |
|
Camera |
Sensor |
1/3" CMOS |
Focal Length |
4 mm |
|
Aperture |
F2.0 |
|
Optical Field of View |
102.9° diagonal, 86.4° horizontal, 46.1° vertical |
|
Minimum Illumination |
0.1 lux |
|
IR distance |
Night visibility up to 15m , 10M Color Nightvision |
|
Audio |
Input |
Built-in microphone |
Output |
Built-in speaker |
|
Two-way Audio |
Full duplex |
|
Audio Compressing |
AAC |
|
Video |
Video Compressing |
H.264, H.265 |
Lighting Frequency |
50 Hz, 60 Hz |
|
Frame Rate |
15 fps |
|
Maximum Resolution |
4MP 2560 × 1440 |
|
Light Source For Night Vision |
White light or infrared LED switchable |
|
Network |
Wireless Standard |
2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) |
Protocols Supported |
TCP/IP, UDP/IP, DHCP, RTMP, MUTP |
|
IP Address Type |
Dynamic IP address |
|
Recording |
Recording Method |
Alarm triggered recording, and manual recording |
Video Storage |
Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory |
|
Function |
AI Function |
Human detection |
Wake-up Method |
PIR body induction wake-up and remote wake-up |
|
Alarm Notification |
Alarm push by mobile app, white LED flashing and alarm sound warning |
|
Indicator |
RGB tri-color LED |
|
Battery |
Capacity |
5200 mAh |
Removability |
Unremovable |
|
Charging Voltage |
5 V ±5% |
|
Charing Current |
1.5 A |
|
Protection |
Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature |
|
Power Consumption |
Standby |
1.48 mW |
Daytime Working |
0.95 W |
|
Nighttime Working |
1.54W |
|
Interface |
Power |
TYPE-C |
Storage |
Micro SD card |
|
Key |
Power key and reset key |
|
Installation |
Installation Method |
Wall mount, ceiling mount,desktop |
Bracket Type |
1/4'' universal screw hole |
|
Environment |
Dustproof and Waterproof |
IP65 |
Operating Temperature |
-10℃~ 45℃ |
|
Storage Temperature |
-20℃~ 60℃ |
|
Prodoct Dimension |
Dimension |
54(L)mm x 118(W)mm x 81mm(H) (without bracket) |
Bare Weight |
330 g |
|
Material |
ABS + PC |
|
Color |
White |
|
